PRODUCTS

LiBER modular solutions

LONG MODULE (16 CELL)
TECHNICAL DATA
GENERAL INFORMATION


Model: LFP220-2P8S

Battery Type: LFP – Lithium Iron phosphate (LiFePO₄)

Application: (industrial, solar energy storage, UPS, telecom, traction, etc.)

Configurable Cell Arrangement:
Available configurations: 1P16S, 2P8S, 4P4S, 8P2S, 16P1S
(Custom configurations available upon request)

ELECTRICAL CHARACTERISTICS (2P8S)

  • Nominal Voltage 25,6 (V)
  • Nominal Capacity 460 (Ah)
  • Energy Capacity 11,7 (kWh)
  • Maximum Continuous Discharge Current 230 (A)
  • Peak Discharge Current 460 (A)
  • Recommended Charge Current 57,5 (A)
MECHANICAL CHARACTERISTICS


Dimensions: 1098 × 188 × 240 mm

Weight: 80 (kg)

Case Material: anodized aluminum, aluminum.

Mounting Orientation: horizontal / vertical

SHORT MODULE (8 CELL)
TECHNICAL DATA
GENERAL INFORMATION

Model: LFP230-2P4S

Battery Type IFePO₄

Application: (industrial, solar energy storage, UPS, telecom, traction, etc.)

Technology:

Configurable Cell Arrangement:
Available configurations: 8S1P; 4S2P; 2S4P; 1S8P
(Custom configurations available upon request)

ELECTRICAL CHARACTERISTICS (2P4S)


Nominal Voltage 12.8 (V)
Nominal Capacity 460 (Ah)
Energy Capacity 5.85 (kWh)
Maximum Continuous Discharge Current 230 (A)
Peak Discharge Current 460 (A)
Recommended Charge Current 57,5 (A)

MECHANICAL CHARACTERISTICS


Dimensions: 660 × 188 × 240 mm

Weight 41 (kg)

Case Material: anodized aluminum, aluminum.

Mounting Orientation horizontal / vertical

NMC cells

LiBER NMC module LV
2×2 NMC battery pack. Approx.
Approx. 24kWh @48V
4×1 NMC battery pack. Approx.
Approx.48kWh@48V

HESP. High Energy – Standard Power (available)

SEHP. Standard Energy – High Power (available)

DATA SHEET

NMC LVDOWNLOAD

LFP cells

LiBER LFP module LV
2×2 LFP battery pack.
Approx 20kWh@48V

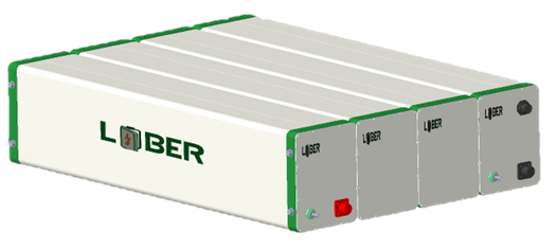

4×1 LFP battery pack.
Approx. 44kWh@48V

HESP. High Energy – Standard Power (available)

SEHP. Standard Energy – High Power (soon available)

DATA SHEET

LFP LVDOWNLOAD

High voltage battery pack

Battery pack composed by 1 to 4 semi-packs, connected in parallel. Each semi-pack composed by modules connected in series. Battery pack connected to the application through the LiBER switch box.

Max voltage 900V. Max energy approx. 600kWh.

NMC cells

NMC_HV_module_long
LiBER NMC module HV
12 modules in series.
Approx. 150kWh@650V
3 semi-packs in parallel. 36 module (12×3) Approx.450kWh@650V

HESP. High Energy – Standard Power (available)

SEHP. Standard Energy – High Power (available)

DATA SHEET

NMC HVDownload

LFP cells

will be added soon

Other solutions

examples

13 NMC modules in series.
Approx. 70kWh@330V
